Description
The first letter of the meter unit identifies the type of threads on the unit. Meter units that begin with the letter “F” denote inch threads.

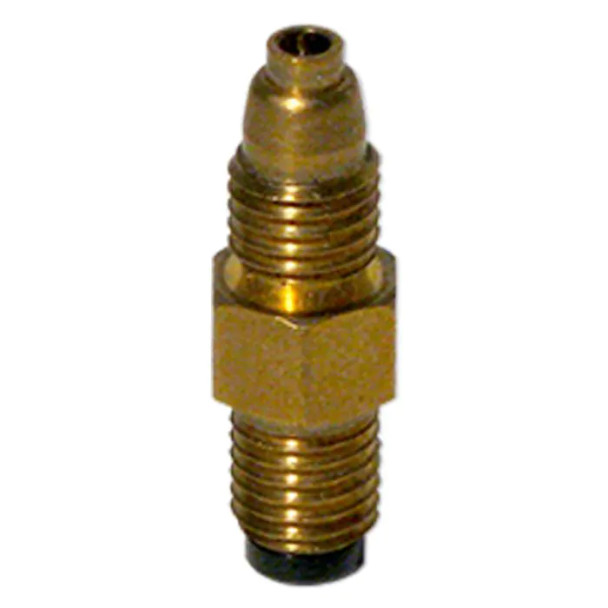

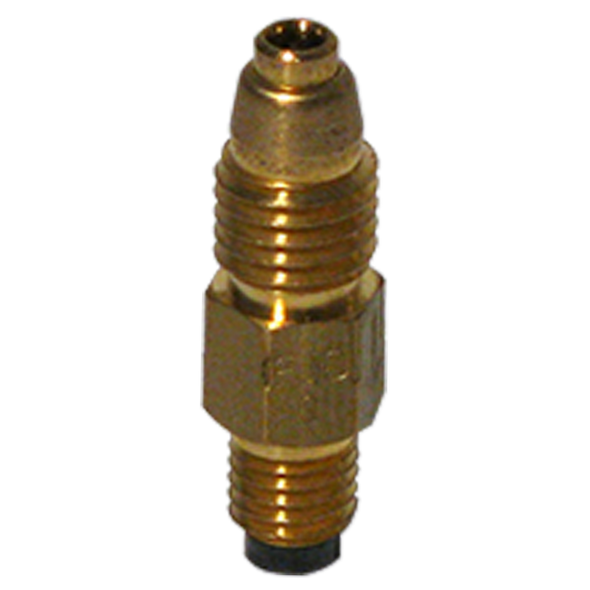

Threaded into a junction or junction header with a tail tube leading to the bearing. The inlet thread on the “FJ-” meter unit is 5/16-24 to mate with standard junctions and junction headers. The “AJ-” meter unit has the metric-M8xl thread which is very close to a 5/16-24 thread. There are three different “Junction” types identified by the third letters “B”, “C” and “D”. Type “-JB” is the most commonly used meter unit and has a 5/16-24 or M8xl outlet thread for a 5/32 tail tube to the bearing. The type “-JC” also has a 5/16-24 outlet thread but has a tubing connection insert for a 3/32 dia. tail tube. Type “-JD” are thinner than standard junctions and also have closer hole spacing. Type “-JD” are made from 5/16” hexagon bar and have a 1/4-28 outlet thread to accommodate the 5/16 hex compression nut #B3610.
Order the Bijur Delimon Meter Unit now! 30-day money-back guarantee!
Some of our most
Frequently Asked Questions
| What are Meter Units used for? Meter units are oil proportioning devices used in cyclic lubrication systems. They regulate the amount of oil delivered to specific bearing points in a lubricating system. | What types of threads do Meter Units have? Meter units are oil proportioning devices used in cyclic lubrication systems. They regulate the amount of oil delivered to specific bearing points in a lubricating system. | How do I choose the correct Meter Unit? When selecting a Meter Unit, consider the type of lubricator (cyclic vs. continuous), flow rate, and thread type. Use the part numbers and flow rate chart to ensure the correct unit for your application. | What flow rate options are available for Meter Units? Standard flow rates range from 00 (slow) to 3 (fast), with additional special rates like 3/0 (extra slow) and 5 (extra, extra fast) available for specific needs. |
Additional Information
Bijur Part Number: |
B3315 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Junction Type |
Flow Rate: |
Medium Slow |
