Description
The first letter of the meter unit identifies the type of threads on the unit. Meter units that begin with the letter “F” denote inch threads.

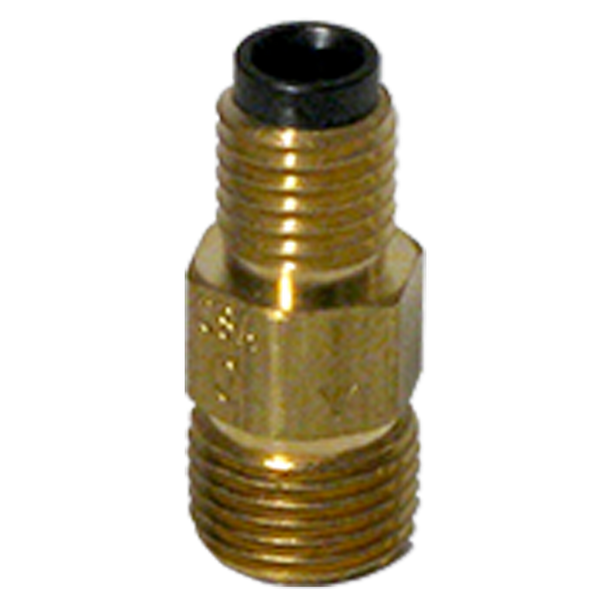

Mounted directly at the bearing and at the end of a pressure line. The inlet end is a 5/16-24 male thread for connection to 5/32” tubing and the outlet end has a 1/8 pipe thread to provide a sealed connection to the bearing tap. The “-SA” has a 1/8 NPT outlet thread and the “-SB” has a 1/8 BSP thread.
Order the Bijur Delimon Meter Unit now! 30-day money-back guarantee!
Some of our most
Frequently Asked Questions
| What are Meter Units used for? Meter units are oil proportioning devices used in cyclic lubrication systems. They regulate the amount of oil delivered to specific bearing points in a lubricating system. | What types of threads do Meter Units have? Meter units are oil proportioning devices used in cyclic lubrication systems. They regulate the amount of oil delivered to specific bearing points in a lubricating system. | How do I choose the correct Meter Unit? When selecting a Meter Unit, consider the type of lubricator (cyclic vs. continuous), flow rate, and thread type. Use the part numbers and flow rate chart to ensure the correct unit for your application. | What flow rate options are available for Meter Units? Standard flow rates range from 00 (slow) to 3 (fast), with additional special rates like 3/0 (extra slow) and 5 (extra, extra fast) available for specific needs. |
Additional Information
Bijur Part Number: |
B1083 |
Thread Type: |
Inch thread - 5 lb check valve |
Type, Location & Mating Parts: |
Straight Type |
Flow Rate: |
Medium Slow |
