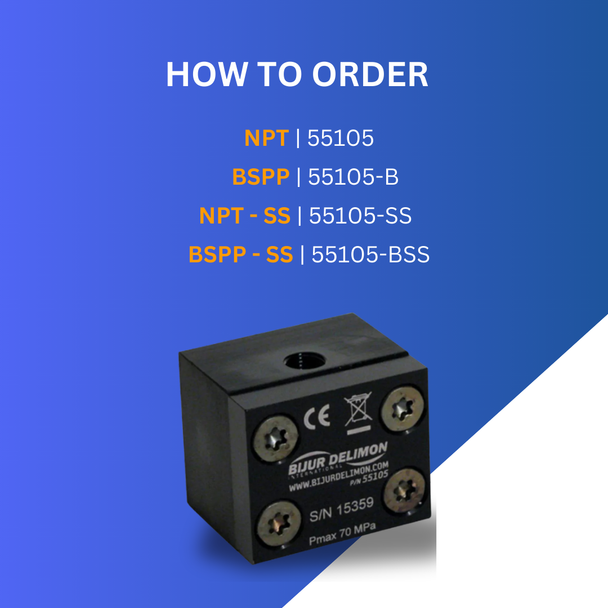

The Bijur Delimon 55105 Lube Point Monitor is a highly precise device that uses an advanced oval gear mechanism featuring two integrated magnets. These magnets are embedded within one of the oval gears and interact with a reed switch housed in the monitor body. As lubricant flows through the 55105, it drives the rotation of the oval gears. Each complete gear rotation corresponds to a displacement of 0.040 cubic inches (0.65cc) of lubricant.

Designed for precision and durability, this advanced lubricator boasts a flow range of 0-2500 cc/min and operates under extreme conditions, with a maximum pressure of 10,153 psi (700 bar) and an accuracy of ±3%. Built to endure up to 109 pulses, it withstands temperatures from -4°F to 158°F (-20°C to 70°C) and vibrations up to 20 g. With IP-67 enclosure protection, it features versatile 1/8NPT or 1/8BSPP connections and is compatible with ISO VG 32 oil to NLGI Grade 2 grease. Available in lightweight aluminum or stainless steel (0.186 kg), the unit includes a 4-pole M12 x 1 male connection and operates at up to 24 VDC, 0.20 amp.

This monitor seamlessly integrates with any PLC, providing reliable feedback to confirm that lubricant has successfully reached critical lubrication points. The 55105 Lube Point Monitor ensures consistent and effective lubrication, safeguarding the performance and longevity of your equipment.

Designed for All Situations

The Lube Point Monitor from Bijur Delimon is right for every application where specific amounts of lubricant are disbersed to critical points. Lube Point Monitors are dependable in steel, food processing, conveyor applications, and more.

Eliminate Over- or Under-Lubrication Hassles

Lube Point Monitor is intended to be mounted at or near the lubrication point inlet. It can be used with any type of grease or oil system (Dualine/Progressive/PDI).
